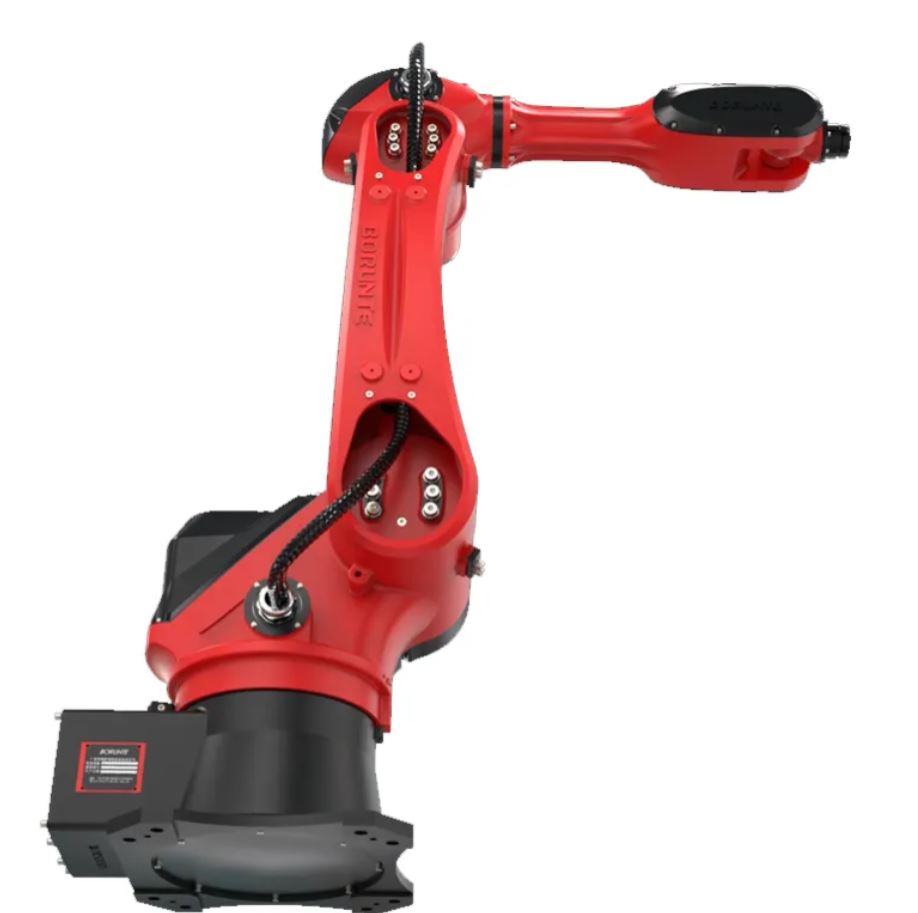

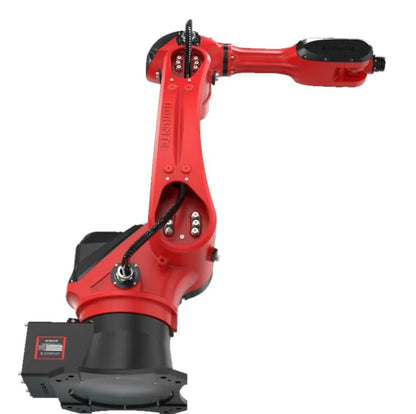

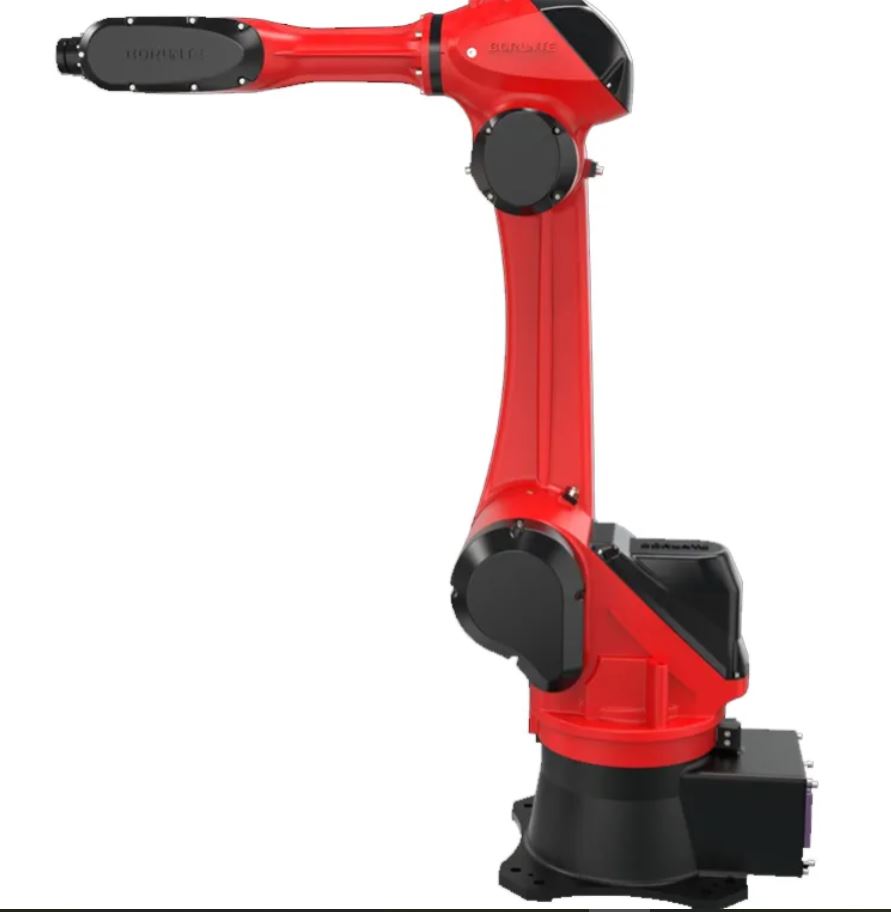

6 Axis Automatic Robot Arm Industrial Robotic Arm Handling and Palletizing High Precision Robot Arm
6 Axis Automatic Robot Arm Industrial Robotic Arm Handling and Palletizing High Precision Robot Arm
SKU:
| Attribute | Details |
|---|---|
| Production Capacity | 500 |
| Power (W) | 5.7 KVA |
| Voltage | 220V 50/60HZ |
| Weight (KG) | 220 |
| Place of Origin | China |
| Application | Welding, Polishing, Handling, Palletizing |
| Warranty | 1 Year |
| Dimension (L * W * H) | 105 * 77 * 152 cm |
| Video Outgoing Inspection | Provided |
| Machinery Test Report | Provided |
| Core Components | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
| Number of Jaws | 6 |
| Drive Type | Electromechanical, Servo-electric |
| Ingress Protection | IP54, IP65 |
| Product Name | 6 Axis Robot Arm |
| Keyword | Automatic Robot |
| Function | Picking, Lifting, Handling, Placing |
| Payload | 10 kg |
| Model | BRTIRUS1510A |
| Advantage | Cost Save, High Efficiency |
| Technology | Huacheng Control System |
| Usage | Production Line |
| Arm Length | 1500 mm |

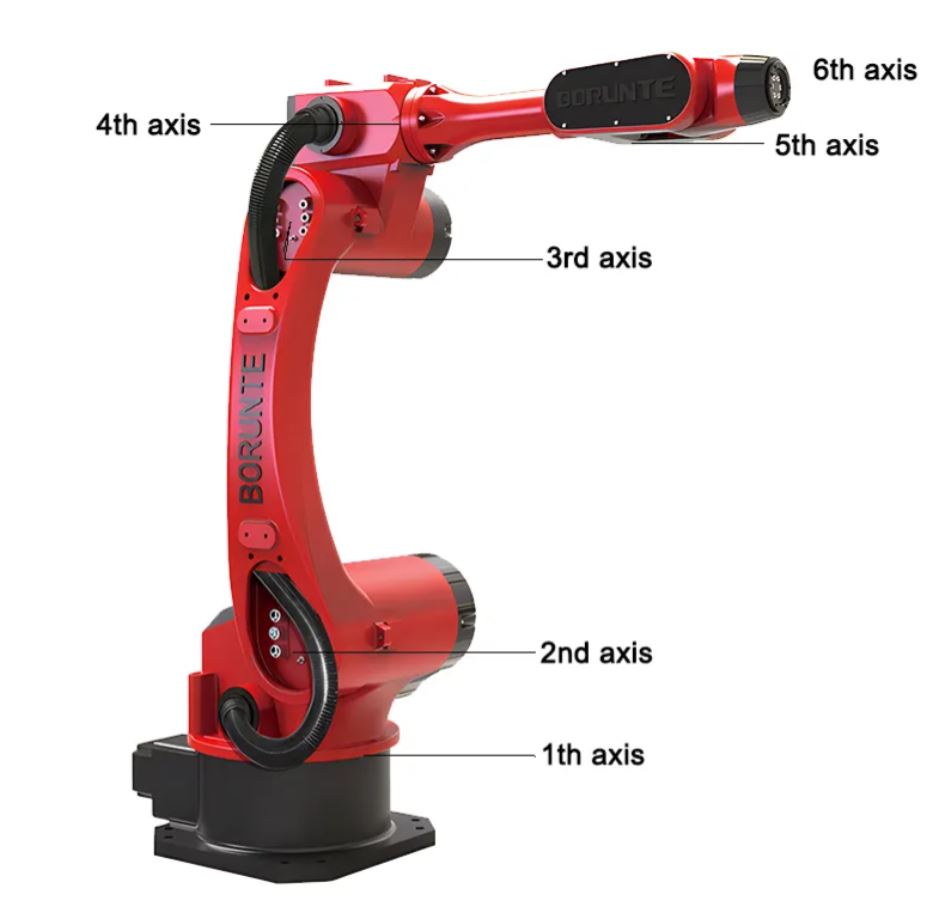

| Structure | 6 Degrees |
| Selling Units | Single item |
| Single Package Size | 105 * 77 * 153 cm |
| Single Gross Weight | 220.000 kg |
