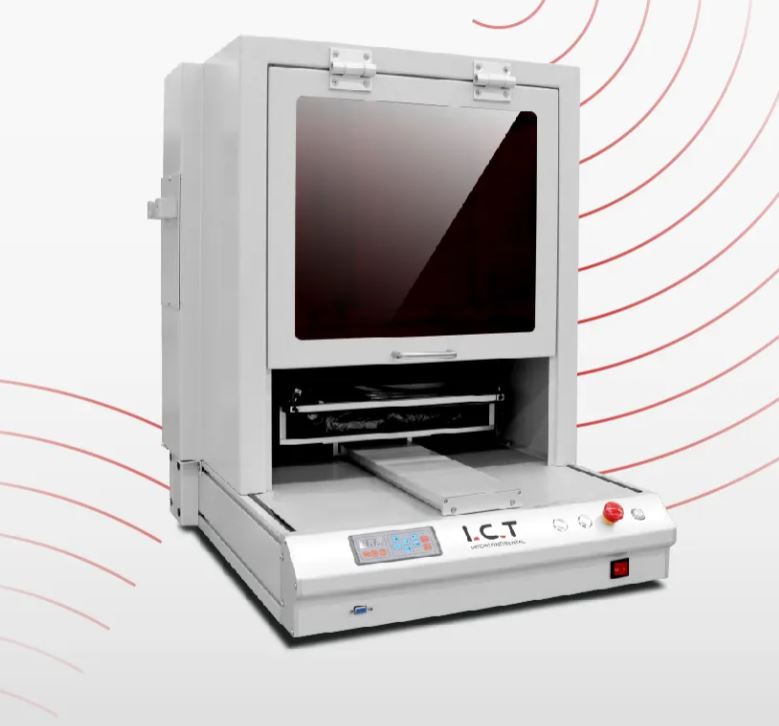

Desktop PCBA Slot Die Coating Machine
Desktop PCBA Slot Die Coating Machine
SKU:25MC01PM19163
| Attribute | Value |
|---|---|
| Warranty | 1 Year |
| Voltage | 220V |
| Core Components | Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
| Video Outgoing Inspection | Provided |
| Machinery Test Report | Provided |
| Power (W) | 0.5KW |
| Weight | 50 kg |
| Dimension (L×W×H) | 800 × 900 × 900 mm |
| Name | Desktop PCBA Coating Machine |
| Valves Number | Atomizing valve 1 pcs, Precision valve 1 pcs |
| Axis Number | 3-Axis (X, Y, Z) |
| PCB Size | 50 × 50 ~ 400 × 400 mm |
| Driver System | Stepper Motor |
| Material Volume | 1 set 10L glue bucket + 1 set 2L cleaning bucket |
| Max. Speed | 400 mm/sec |
| Inspect Light | UV Light |
| Power Supply | AC 220±10%, 50/60HZ, 500W (Option: 110V) |
| Control Method | Control handle |
