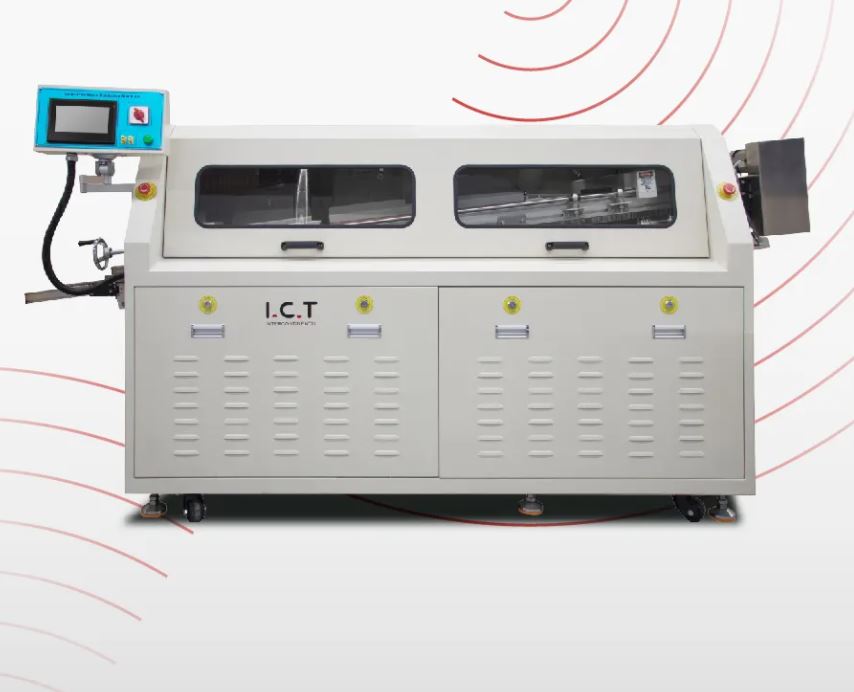

High Speed Double DIP wave Soldering Machine
High Speed Double DIP wave Soldering Machine
SKU:
| Attribute | Details |
|---|---|
| Core Components | Bearing, Engine, Gear, Gearbox, Motor, PLC, Pressure Vessel, Pump |
| Warranty | 1 Year |
| Video Outgoing Inspection | Provided |
| Machinery Test Report | Provided |
| Weight (kg) | 1600 |
| Model Number | Acrab 350 |
| Model | Acrab 350 |
| Dimensions (mm) | 420 × 1420 × 1750 |
| Power Supply | 3P5W, 380/220V 50Hz |
| Startup Power | 33 kW |
| Operation Power | 8 kW |
| Control System | PC + PLC |
| Preheating Mode | Hot Air / IR |
| PCB Width (mm) | 50–350 |
| Solder Pot Style | Mechanical Motor Drive |
| Cooling Method | Forced Air |
