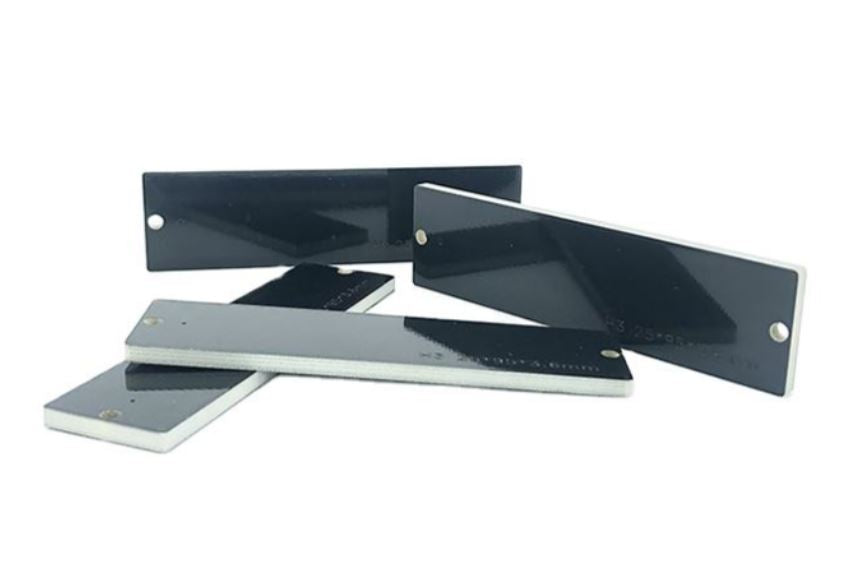

PCB FR4 Passive Anti-metal Tag for Metal Items and Machines
PCB FR4 Passive Anti-metal Tag for Metal Items and Machines
SKU:25IP02RN22196
| Attribute | Details |
|---|---|
| Frequency | 860–960 MHz / 902–928 MHz |
| Special Features | Waterproof / Weatherproof |
| Communication Interface | RFID |
| Model Number | PCB TAG |
| Chip | Alien H3 |
| Material | FR4 |
| Size | 70 × 20 × 3.6 mm |
| Protocol | ISO18000-6C EPC Class 1 Gen 2v2 |
| Memory | TID: 64 bits, EPC: 96 bits, User: 512 bits |
| Operating Mode | Passive |
| Application Temperature | -40℃ to +150℃ |
| Personalization | Logo Printing, QR Code Printing, Barcode Printing, Encoding |
| Application | Assets Management, Metal Items, Metal Machines |
